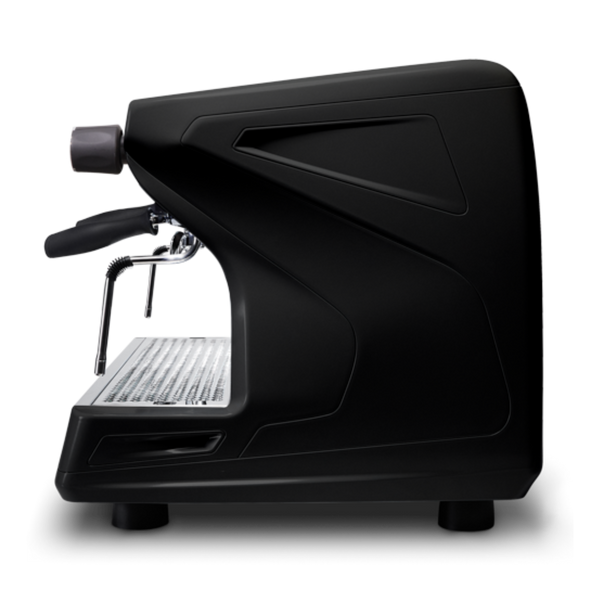

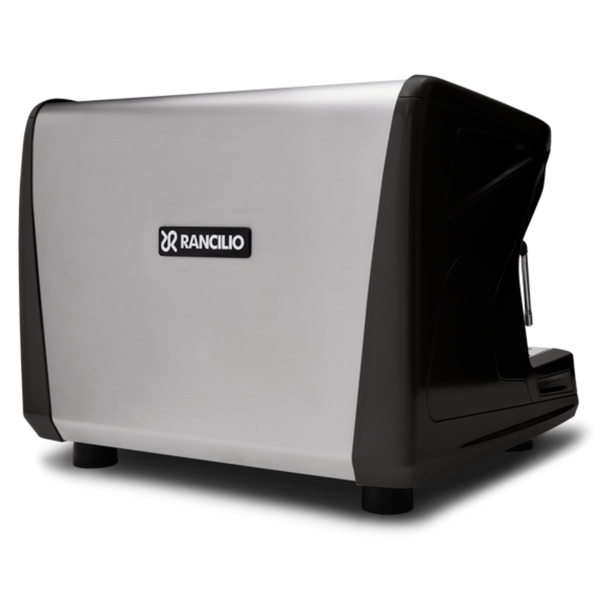

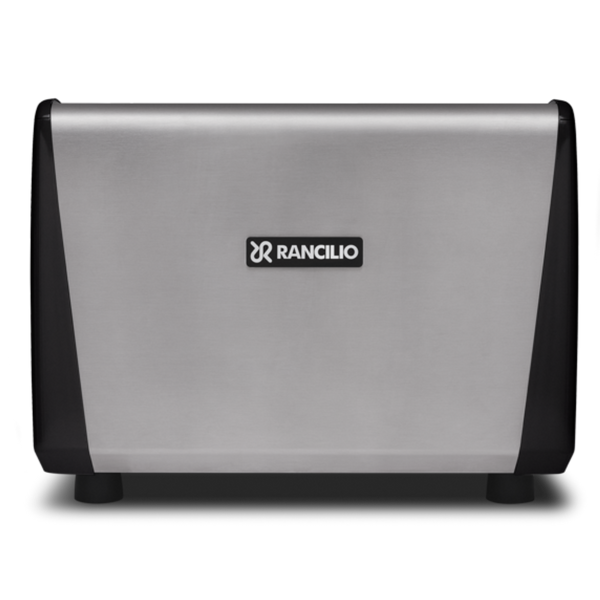

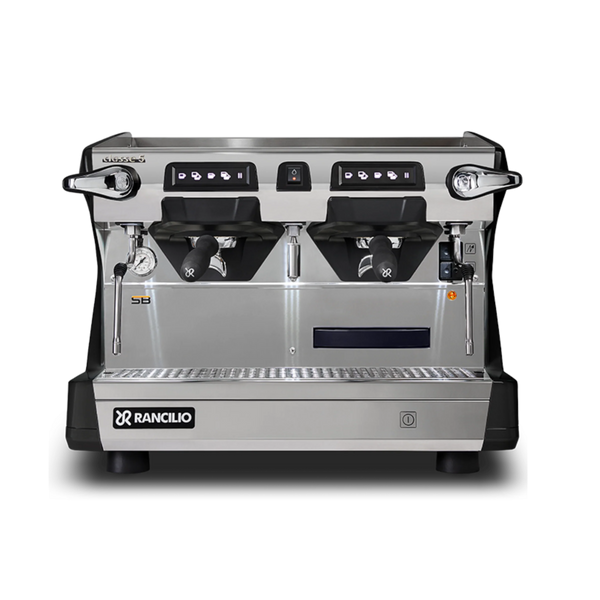

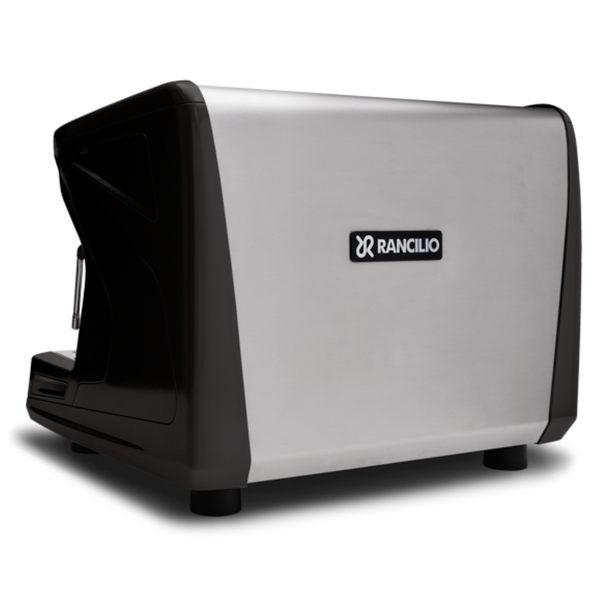

Rancilio Classe 5 Compact USB Tall 2 group - Anthracite Black

The Classe 5 exemplifies functional minimalism combined with contemporary aesthetics. The intuitive brew group control buttons are designed for instant interaction between the barista and the machine, with 4 programmable brewing settings per group. Body panels are crafted with brushed stainless steel, ABS, and nylon for an attractive design that is built to last. The compact model version makes these features available in a space-saving footprint.

Standard Features:

• 4 programmable volumetric controls per group for a simple and consistent workflow
• Highly-efficient heat exchange boiler with Steady Brew technology
• Electrical heating
• Durable and attractive stainless steel, nylon, and ABS body panels
• 2 manual steam wands with ergonomic C-Lever handle
• Powerful volumetric pump
• Boiler pressure control gauges
• USB port makes it easy to save drink parameters and update software or programming
• Hot water outlet with manual button control
• Durable polymer drip tray inserts are easily removable and dishwasher-safe
• Adjustable feet

Available Options:

• iSteam: Intelligent steam wand that automatically infuses air and turns off at the proper temperature to create the perfect milk for cappuccinos and lattes
• Color Choices: Anthracite Black, Ice White or Stone Grey

Accessories Included:

• 2 double portafilter
• Rubber blind disks for cleaning
• User manual
• Foot extensions

Space Requirements:

• Allow 6” clearance on all sides of the machine for proper ventilation
• Allow 24” H x 5” W for in-line filter. Filter can be mounted behind the machine or under the counter.
• Allow a minimum of 3” (7.62 cm) clear space under filter to facilitate filter change.

Videos:

Classe 5 USB Overview Training

Classe 5 USB Grouphead Cleaning Cycle

Classe USB Series Programming Volumetric Brewing Presets

Countertop Requirements:

Electrical Connections:

Power can be installed under or above the counter. Please allow 3”-4” of space for the plug, especially when placing power above the counter and behind the machine

Water Connections:

Dedicated cold water access line with standard female 3/8” NPT fitting and manual shut off valve within 4’ of the machine required.

Drain Requirements:

Open gravity drain with minimum 2” I.D. within 4’ of the machine

Water Quality Statement:

The fact that water is potable is no guarantee that it is suitable for coffee machines. Your water supply must be within these general guidelines:

SUPPLY PRESSURE: 30-70 psi

HARDNESS: 2-3 GPG (1 grain of hardness = 17.1 ppm)

Water entering the machine should have a water hardness level of 2-3 GPG at all times. If the water supply is not within this range, a dedicated water softener (if above 3 GPG) or mineral addition cartridge (if below 2 GPG) is required for the coffee machine to operate properly over time (see Rancilio Group North America Water Quality Statement for further details).

Tall Version

Maximum Cup Height: 14.5 cm / 5.7 in

Downloads

• Rancilio Classe 5 Compact USB Tall 2 group 220V - Spec Sheet
• Rancilio Classe 5 Compact USB Tall 2 group - Parts Catalog
• Rancilio Classe 5 Compact USB Tall 2 group - Electrical & Hydraulic Diagrams
