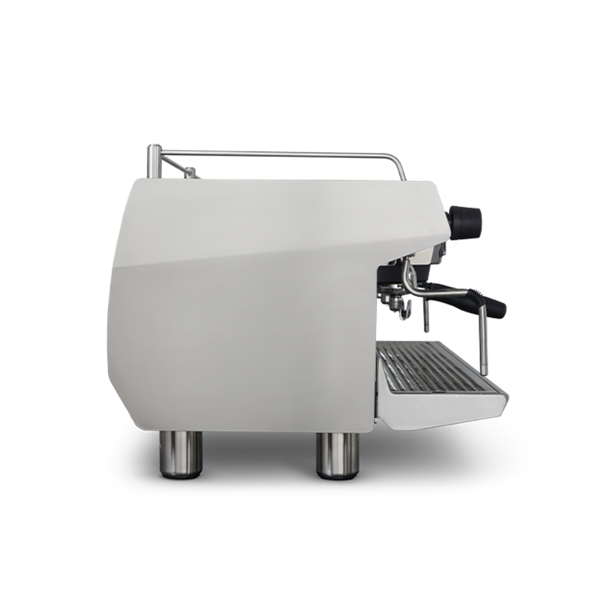

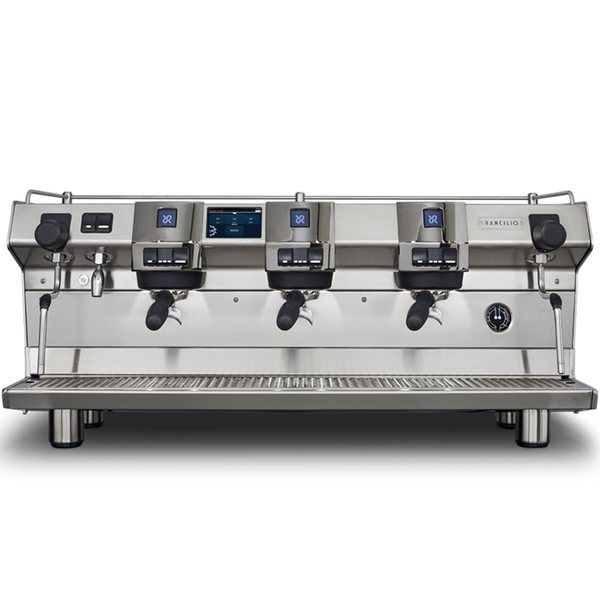

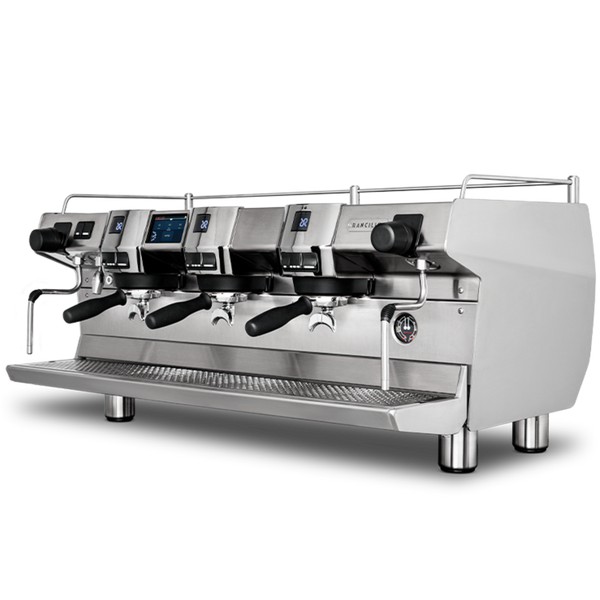

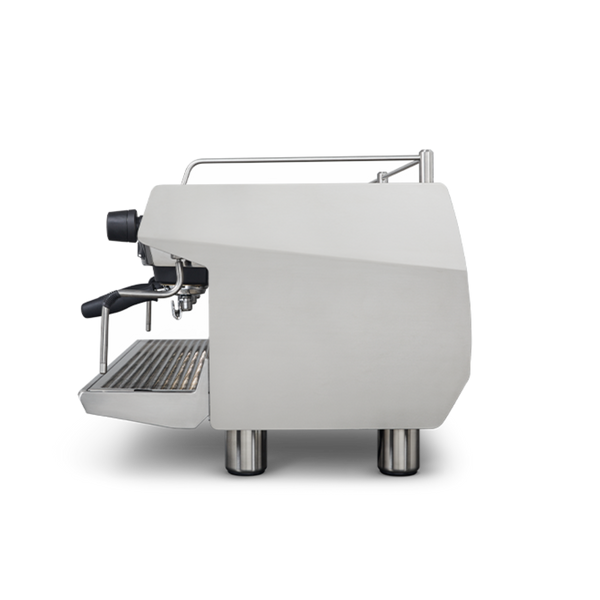

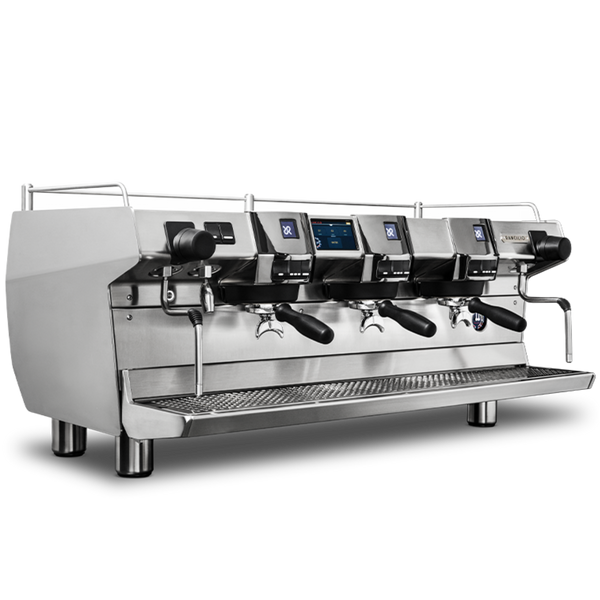

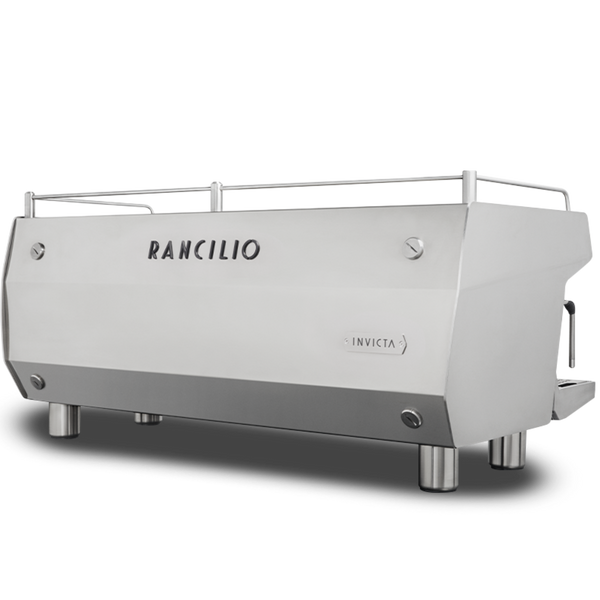

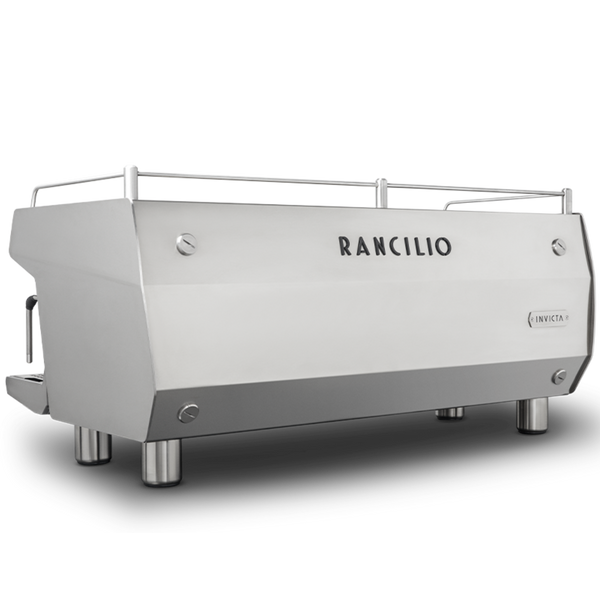

Rancilio Invicta 3 group - Inox

Efficient, accurate and approachable specialty espresso for all.

The Invicta boasts a long list of barista-focused features that promote a simplified, more efficient workflow without compromising on brewing consistency and technology.

The Invicta's touchscreen interface provides quick and easy access to all the machine's settings, including pre and post infusion capabilities and volumetric controls. Depending on your preference, three buttons per group allow either quick activation of programmed brew cycles or total manual control.

Using only a single boiler and building on Rancilio's Steady Brew technology, the regulated heat exchange circuit features an insulated group that maintains temperature as the thermosiphon circulates hot water when not in use. When activated, the Invicta's programming knows exactly how to heat the group with its Smart Flush feature. A T-Switch on each group allows the user to independently control temperature further.

4.3" Touchscreen

Quick and easy access to all machine settings. There are 2 types of interface - "easy" with only the machine settings and "tech" for more experienced baristas - and 3 different menus dedicated to baristas, managers and technicians.

Steady Brew

By keeping the water temperature stable during extraction, Steady brew guarantees excellent thermal stability, reliability, both during busy periods and in low usage conditions.

Pre-Infusion and Post-Infusion

The barista can very the water pressure both in the initial stage (pre-infusion) and in the final stage (post-infusion) of the extraction process, choosing between main pressure or pump pressure, and also adjust the duration of all stages (pre-infusion, extraction, post-infusion).

Key Features:

Interface

• Touchscreen Interface
• Digital display (per group)

Brewing Technology

• Steady Brew (bass groups with HDP insulation) - Rancilio Steady Brew (SB) technology is the evolution of the traditional thermosiphon system and introduces a set of innovation features designed to improve the performance of all single-boiler espresso machines. By keeping the water temperature stable during extraction, Steady Brew guarantees excellent thermal stability, reliability and maximum repeatability, both during busy periods and in low usage conditions. Rancilio Patented Technology.
• Ergonomic Portafilter - The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 gram, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.

• T-Switch - Thanks to the 4-position T-Switch knob, a different extraction temperature can be set for each group, even for single boiler coffee machines. With the boiler adjusted to 1.0 bar, a temperature of approximately 88°C, 93°C, 96°C or 98°C can be set on each group and the right extraction temperature for each type of coffee is always available. The T-Switch can only be adjusted by specialized technicians during installation by removing the cup warmer.

• Pre-infusion and Post-infusion

Water

• Smart Flush - By activating the Smart Flush function, the duration of the flush varies according to the time elapsed since the last coffee delivery. This function keeps the group at the right temperature and improves thermal stability.
• X-Tea - Baristas can program water dosages and temperature levels via the interface. Rancilio Patented Technology.

Steam

• Cool touch steam wand - The cool touch steam wand is thermally insulated with a double-layered protective coating.
• Two-position steam knob

Design

• Ergonomic Portafilter - The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 gram, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.

• LED Lights - White LED lights positioned under the group heads provide excellent illumination for the work area.

• Height-adjustable drip tray

Green

• ABM - ABM is a specific software developed to improve the performance of the machine in conditions of intensive use. When simultaneously brewing espresso, dispensing water and steaming milk, ABM switches on the heating element to pre-empt any drops in pressure under the preset value, thus preventing drops in temperature to ensure constant heating levels.
  Control of the boiler pressure is optimized in the case of the intensive and simultaneous use of multiple group heads. In these cases, in order to prevent the pressure from dropping below a minimum value of 0.5 bar, ABM can stop water from being dispensed until the boiler pressure returns to a suitable level.
  ABM also allows for control of the machine’s power consumption, reducing it to 2/3 of the normal value where power availability is low.
  For espresso machines equipped with the iSteam wand, ABM also improves steam delivery performance by increasing the power of the heating element in the boiler, allowing it to produce more heat and reduce drops in pressure during milk frothing. Rancilio Patented Technology.

• Auto On/Off - It is possible to set the automatic on and off times for the machine (Classe 11, Classe 20) or set the automatic on time and power-on hours (Classe 9, Classe 7) for each day of the week.

Cleaning & Maintenance

• Easy Clean - The group cleaning and rinsing cycles are automatic and can be activated from the touchscreen. A daily alarm can be set to remind users to activate the cleaning cycle. It is also possible to set the optional machine block if cleaning does not take place and display the history of all actions performed.

• Advanced Diagnostics - Thanks to the Advanced Diagnostic system, technical intervention times are reduced to a minimum. The “Technical” menu includes a “Service” function allowing users to test all the machine’s systems, to simply tap on the interface to check all components are in good working order, and to pinpoint faults or technical problems without having to inspect internal elements.
• Snap & Share - Snap&Share is a QR code reader app that allows users to share the technical settings of their espresso machine, keep track of maintenance operations, monitor consumption, and register new products to activate the warranty.

Options

• Cup Warmer - The cup warmer keeps all espresso and cappuccino cups at the right temperature at all times.
• Portafilter with wooden handle (spare parts catalogue) - Wooden Handle Portafilter + Wooden Steam Lever Handle.
• Connect telemetry system (info upon request) - Connect is a powerful IoT solution developed by Rancilio Group, to gather and easy analyze all the value relevant data generated by a single coffee machine or an entire fleet. Via a customizable dashboard with widgets, tables and graphs, Connect gives you a ready to use digital toolkit, to monitor key performance parameters in real time and empower your whole coffee business.
• iSteam Pro - iSteam Pro is the steam wand designed for automatic milk frothing. It is built to work perfectly with all types of milk, including plant-based alternatives, effortlessly delivering the same high-quality results as a professional barista. The touchscreen allows precise adjustment of both temperature and froth level, saving up to 10 customized recipes, and activating the automatic wand with a simple tap. iSteam Pro is easy to use and simple to clean, also thanks to the pre-purge function, which eliminates condensation before frothing. Ideal for high-volume locations with heavy cappuccino and macchiato production, iSteam Pro is the perfect solution for speeding up service while ensuring consistently perfect froth for every beverage. Available as an optional feature, the iSteam Pro wand can be installed on the right side, left side, or both sides of the machine.

Colors on request

The stainless steel body panels can be painted in other colors depending on customer requirements. Information and prices on request.

Countertop Requirements:

Electrical Connections:

Downloads

• Rancilio Invicta - Spec Sheet
• Rancilio Invicta - Manual
